The machining of industrial valve bodies is one of the most critical operations within the manufacturing and refurbishment cycle of industrial valves. The body is not merely an external structure: it is the component that withstands pressure, integrates sealing surfaces, ensures internal alignment and directly determines the overall sealing integrity of the assembly.
A minimal deviation in concentricity, parallelism or surface roughness can lead to leakage, premature seat wear or rejection during hydrostatic testing. For this reason, body machining must be approached through an integrated methodology that combines process strategy, dimensional control and final validation.
At Asimer Group, as a machining company, this process is supported by advanced CNC technology, specialized welding capabilities and high-precision verification carried out in a dedicated metrology room.
The body in the machining of industrial valve bodies: structural and functional element
Within the different types of industrial valves, the body performs several key functions:
- Containing internal pressure.
- Channeling the flow.
- Integrating the seat.
- Maintaining stem–disc alignment.
- Allowing assembly without residual stresses.
The machining of industrial valve bodies must be adapted to the specific geometry of the design and to the base material (casting, forging or solid machined block).
Critical areas typically include:
- Flange faces.
- Internal diameter (bore).
- Seat geometry.
- Stem housing.
- Centering registers.
- Pressure-loaded transition areas.
Pre-machining and geometric stabilization
In cast or forged bodies, especially in large diameters, pre-machining plays an essential role: relieving internal stresses and generating stable geometric references.
In large valve machining projects, the process is typically carried out in phases:
- Creation of reference planes.
- Controlled rough machining.
- Repositioning of the component.
- Final finishing operations.
- Intermediate verification.
This approach reduces subsequent deformation and improves process repeatability.

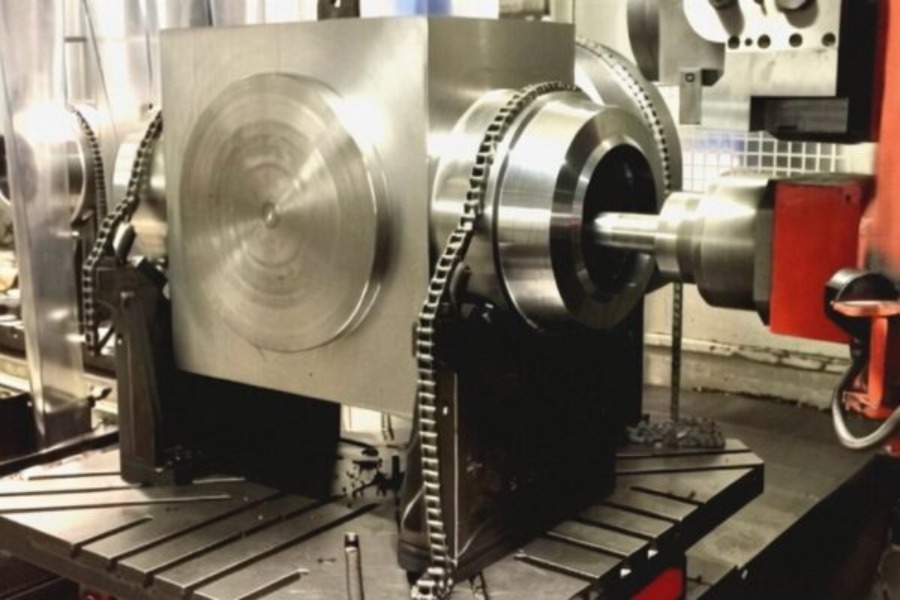

Internal machining of industrial valve bodies and seat
The internal machining of valve bodies is where sealing performance is truly determined.
In this stage, the following parameters are controlled:
- Concentricity between the stem axis and the bore.
- Parallelism of the sealing surfaces.
- Geometry of the seat pocket.
- Functional surface roughness.
Seat machining process in the valve body
The valve seat machining process includes:
- Pre-machining for stabilization.
- Generation of reference surfaces.
- Seat finishing with concentricity control.
- Surface roughness control.
- Final dimensional verification.
In critical areas, this process is complemented by [non-destructive testing] and inspection using [penetrant testing] to rule out surface discontinuities before final validation.
Machining of butterfly valve bodies
In butterfly valve configurations, controlling the coaxiality between the shaft and the internal housing is essential to prevent uneven disc wear and loss of sealing integrity.
The machining of butterfly valve bodies requires:
- Concentricity control.
- Flatness of sealing faces.
- Strict tolerances on centering diameters.
- Subsequent geometric verification.

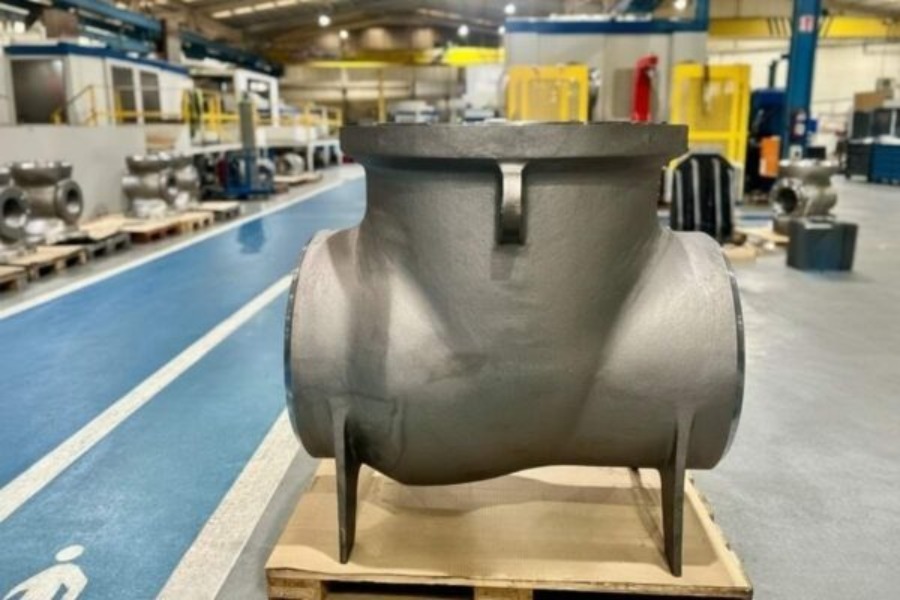

Machining of check valve bodies
In applications such as axial flow check valves, any geometric deviation can affect the ability to achieve tight shut-off.
The machining of the body must ensure:
- Proper guidance of the obturator.
- Precise seat geometry.
- Stability under pressure.
Machining of gate valve bodies
In gate valve bodies, the parallelism and alignment between internal surfaces determine the valve’s performance in service.
Poor alignment can lead to:
- Premature wear.
- Loss of sealing integrity.
- Increased operating torque.
Repair of industrial valve bodies
The repair of valve bodies is common in sectors such as Oil & Gas, petrochemical and naval industries.
The most frequent types of damage include:
- Seat erosion.
- Localized corrosion.
- Cavitation damage.
- Microcracks.
The recovery process may involve:
- Removal of the affected material.
- Material build-up through TIG welding or plasma transferred arc (PTA) welding.
- Precision re-machining.
- Full dimensional verification using a portable measuring arm.
How much does it cost to repair an industrial valve body?
The cost depends on several factors:
- Material (stainless steel, special alloys).
- Nominal diameter.
- Required level of documentation.
- Need for NDT and certified dimensional inspection.
In many cases, a controlled repair process is more efficient than replacing the entire valve body.
Machining of pump bodies and centrifugal pump casings
The centrifugal pump casing shares similar requirements in terms of concentricity, flatness and alignment.
You can explore further context in parts of a centrifugal pump and in industrial applications of centrifugal pumps.
Dimensional control and final validation
Machining does not end at the machine.
Final validation includes:
- Concentricity control.
- Parallelism of faces.
- Coaxiality.
- Surface roughness verification.
- Three-dimensional measurement.
In critical environments, especially under the standards required for high-precision machining for the Oil & Gas sector, traceability and metrological verification are essential.
Do you need machining or repair of valve bodies with critical tolerances?
Tell us the valve type, material, nominal diameter, operating pressure and inspection requirements. We analyze your project and define a technical strategy focused on reliability, leakage reduction and dimensional compliance.
Request a technical evaluationFrequently asked questions about machining industrial valve bodies
What tolerances are typically required in the machining of industrial valve bodies?
It depends on the design and the type of valve, but critical areas usually require control of concentricity, parallelism and surface roughness on the seat and functional faces. The key factor is not a specific number, but ensuring that both the machining process and the verification methodology are clearly defined.
Which is more critical: the seat or the flange faces?
Both. The seat determines internal sealing integrity, while the flange faces affect assembly, alignment and the prevention of external leakage. In demanding projects, both are controlled as an integrated system.
How is a valve body verified before being delivered to the OEM?
Through a dimensional control strategy that includes measurement of key dimensions, verification of coaxiality and, when required, three-dimensional measurement (CMM) together with the issuance of a dimensional inspection report.
When does it make sense to repair a valve body instead of replacing it?
When the body is expensive, critical or has a long lead time, and the damage can be recovered through material build-up and re-machining while guaranteeing full verification and documentation.
